Peak type：Single,Double Body,Triplets
Color：Customer's Requirment
Thickness：0.1-10mm
Application：Construction,Building
MOQ：100 meter
Product specification
Product details

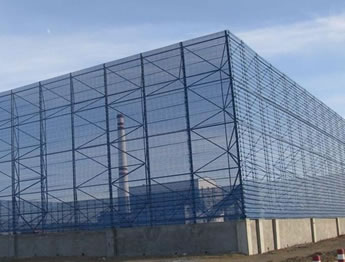

Windbreak wall is an advanced technology to solve the problem of dust pollution control in the open yard of bulk material. It is widely used in heavy dust pollution industries, such as thermal power plants and coal mines.

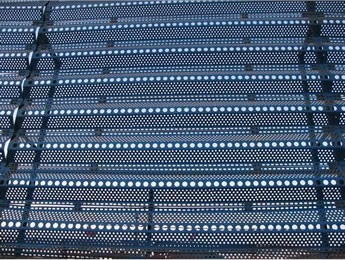

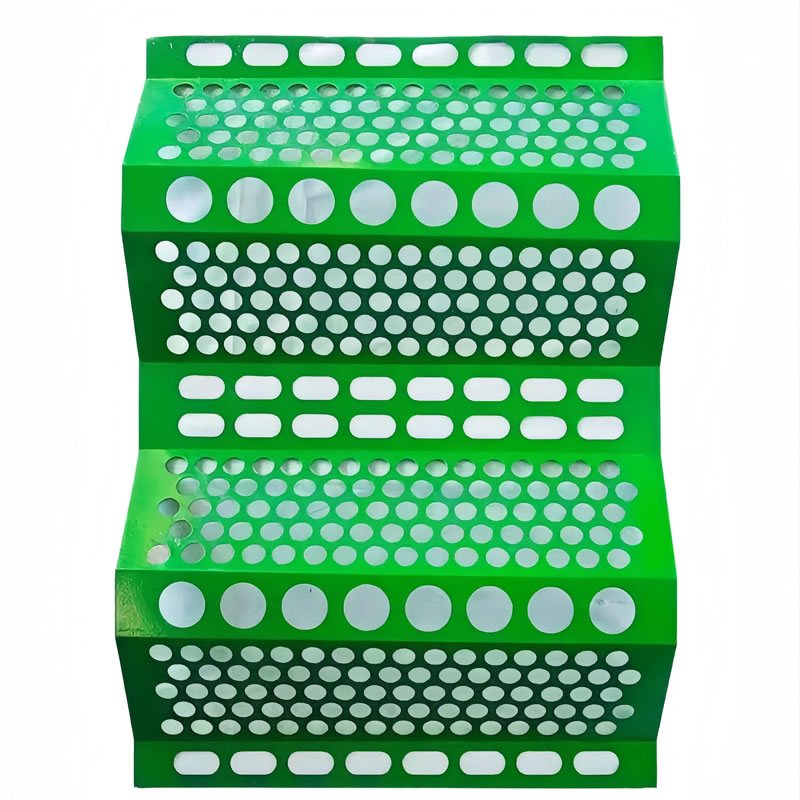

Wind break and dust suppression wall is a porous perforated corrugated panel barrier. At the back of the wall, a low-velocity zone is formed. It effectively reduces the average wind speed, thereby prevents dust from moving, and achieves the purpose of dust suppression. Dust suppression rate can be much more than 80% - 95%.
Material: Aluminum-zinc coated steel plate, galvanized steel plate, cold-rolled steel plate, stainless steel sheet.
Thickness: 0.3mm - 3mm.
Width: 1.2m.
Length: 2m - 20m.
Surface Treatment: electrostatic powder coating.
Packing: Wooden pallet and then wrapped with plastic.
| Plate Material | Thickness of Metal (mm) | Hole Dia. (mm) | Pitch (mm) | Sheet Width (m) | Sheet Length (m) | Porosity (%) | Weight (kg/m2) |
|---|---|---|---|---|---|---|---|
| Cold-rolled steel plate | 0.3 | 6 | 2 | 1.2 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1.2 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1.2 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1.2 | 20 | 19.6 | 3 | |
| Galvanized steel flat plate | 0.5 | 1 | 1 | 1.2 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1.2 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1.2 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1.2 | 2 | 19.6 | 5 | |
| 0.8 | 2.0 | 3.4 | 1.2 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1.2 | 2 | 19.6 | 9.4 | |
| 1.5 | 5.0 | 8.0 | 1.2 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1.2 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1.2 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1.2 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1.2 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1.2 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1.2 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1.2 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1.2 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1.2 | 2 | 19.6 | 4.23 |
Features
High strength, toughness, anti-aging, anti-flame resistance, high temperature, acid, strong ability to withstand bending excellent performance.
Applications

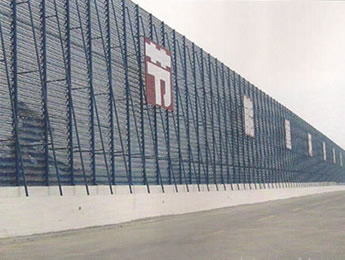

Power plants, coal mines, coking plants, coal washing plant and other enterprises in the coal storage yard.
Ports and harbors, coal storage yard and various yard.
Iron and steel, building materials, cement and other enterprises of various open-air yards.
Construction sites, temporary construction site of road works.
Control dust in desert areas, highways, high-speed railway embankment protection.
Provision of micro-climate for agricultural crops.
Improvement on the wind conditions of sport court.
Improvement of road with sedimentary sand and snow.
Design idea: attenuate the wind with a wall against the most frequent wind direction and suppress dust with another wall against the non-dominant wind direction.
Precise control of the wind for variety of bulk material yard. Personalized solution for bulk yards of different heights.
Standardized design and factory production of the steel structure, on-site assemble shortens the construction period.
The steel structure is formed by lattice truss being only 0.9m away from the root to open. Comparing to the oblique supporting type wall, it saves an area of 70%.
Providing a one-stop turn-key service including design, material supply and installment.
Simple, efficient, high quality, low price! Flexible network, light weight, simple and rapid installation, maintenance, saving time and effort; easily tailored according to user needs, to meet the customer's specific needs; prices lower.
Economic Benefit
Reduce the material losses in open yard.
Save the water for dust suppression.
Social (Environment) Benefit
Improve the living conditions of nearby residents.
Improve the working conditions of the on-site staff.
Reduce the dust pollution to the surrounding air and water.

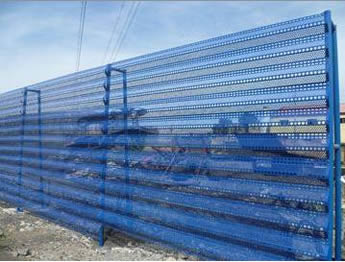

Product application
Packing and Shipping
FAQ
1. How much about your annual production capacity?
A: More than 3000tons.
2. How do you deal with product quality?
A: We have our own quality supervision department.We will be responsible for the loss of our customers due to product quality problems.
3. Can I have a sample order for product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
4.Do you have any MOQ for product order?
A: Generally is 100 square meter,of course less than this quantity is ok,we will check cost.
5.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.How can I know the completion of my order?
A: Deposit 30%payment---start production---transfer information to logistic--book ship---inform customer ETD&ETA---load container---balance payment---send documents .
