Material：Aluminum-zinc coated steel plate, galvanized steel plate, cold-rolled steel plate, stainless steel sheet.
Windbreak panel length：0.5 m – 8.0 m.
Perforation holes shape：Round, oval, rectangle.
Holes diameter：6 mm – 10 mm.
Aperture opening rate：30% – 40%.
Color：Yellow, blue, orange, green, etc.
Package：In wooden cases or in steel frames.
Types：Single peak panel, twins peaks panel, three peaks panel and five peaks panel.
Product specification
Product details
Windbreak panels are also called wind and dust panels, and can be installed into a wind and dust wall. A wind and dust wall is most effective to solve the dust pollution in power plants and coal mine. The anti-wind and dust effect of windbreak wall up to 65 to 85 percent.
Anti-wind and anti-dust panels are made of metal plate by mechanical combination of punching, molding, electrostatic power spray, and testing. Because of the anti-static power spray, wind and dust panel usually does not cause dust adhesion, after rain washed, it looks clean, need no maintain.
Windbreak Panels Feature:
High strength, toughness, resistance to bending.
Anti-aging, anti-corrosion, rustproof, anti high temperature, and anti-acid.
Electrical insulation, fire retardant.
Flat and smooth surface can be colored in various colors.
Simple structure, easy to install and maintenance-free.
Long service life, generally up to 10 years.
Wind break panels Details:
Material: steel plate, galvanized plate, color coated sheet, aluminum-magnesium alloy plate, stainless steel sheet.
Surface treatment: electrostatic powder coating.
Color and length according to customer's requirements.
Packaging : in wooden cases or in steel frames.
Types: wind dust net includes single peak wind dust panels, twins peaks wind dust panel, three peaks wind dust panel, and five peaks wind dust panels.
Perforation holes shape: round, oval, and rectangle.
Holes row on the peak: one row, two row.
Color: blue, yellow, orange, green, red.

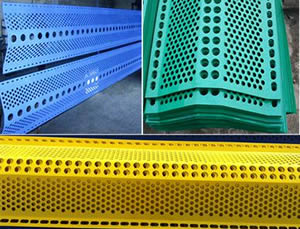

| Width | Peak height | Plate thickness | Length |
|---|---|---|---|
| 250mm - 300mm | 50mm - 80mm | 0.6mm - 1.5mm | 0.5m - 8m. |
| 300mm - 450mm | 70mm - 90mm | ||
| 450mm - 500mm | 90mm -100mm |
Perforation holes shape: round, oval, and rectangle.
Holes row on the peak: one row, two row.
Color: blue, yellow, orange, green, red.

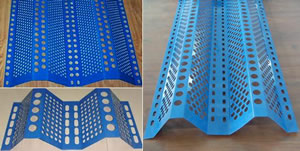

| Width | Peak height | Plate thickness | Length |
|---|---|---|---|
| 400mm - 600mm | 50mm - 100mm | 0.5mm - 1.5mm | 0.5m - 8m. |
| 700mm - 900mm | 90mm - 100mm |
Perforation holes shape: round, oval, and rectangle.
Holes row on the peak: one row, two row.
Color: blue, yellow, orange, green, red.
| Width | Peak height | Plate thickness | Length |
|---|---|---|---|
| 810mm, 825mm, 860mm, 900mm, 910mm, 930mm, 940mm | 70mm | 0.4mm - 1.5mm | 0.5m - 8m |
Perforation holes shape: round, and rectangle.
Holes row on the peak: one row, two row.
Color: blue, yellow, orange, green, red.
| Specification | Width | Peak height | Substrate thickness | Length |
|---|---|---|---|---|
| Type A | 940mm | 15mm | 0.6mm-1.5mm | 0.5m -8m |
| Type B | 940mm | 20mm |

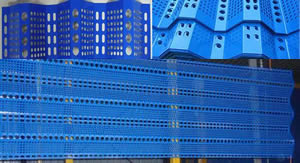

Three peaks wind dust panels, as the most popular type in the market, have the following advantages: simple installation, high-efficiency of construction, after install this construction, the wall have good overall performance, and can resistance strong wind. It reduces construction cost, and promotes competitiveness of construction organization in market. If the width is inappropriate, our company can according your steel structure size to make single peak, twins peaks of anti-wind and dust panels, to easy combined.
Anti-wind and dust panel mesh application:
Power plants, coal mines, coking plants, coal washing plant, in order to save coal field.
Ports, terminals and markets a variety of coal storage yard.
Iron and steel, building materials, cement companies such as a variety of open-air yard.
Coal storage and station of Railway and highway transportation.
construction sites, both sides of the highway and dust road.
crops windproof , desertification weather dust and other harsh environments.
Product application
Packing and Shipping
FAQ
1. How much about your annual production capacity?
A: More than 3000tons.
2. How do you deal with product quality?
A: We have our own quality supervision department.We will be responsible for the loss of our customers due to product quality problems.
3. Can I have a sample order for product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
4.Do you have any MOQ for product order?
A: Generally is 100 square meter,of course less than this quantity is ok,we will check cost.
5.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.How can I know the completion of my order?
A: Deposit 30%payment---start production---transfer information to logistic--book ship---inform customer ETD&ETA---load container---balance payment---send documents .
